BDS Lift Kit 4in High-Clearance Crossmembers

BDSfts lift systems for the standard Colorado to take advantage of the FMVSSS No.126 (ESC System) compliant Colorado kit components and build them into the new ZR2 setup. Up front this 4in system utilizes a pair of 1/4in thick one-piece laser cut steel high clearance crossmembers to reposition the longer travel A-arms along with a multipoint differential relocation system to securely position the front axle and keep CV axle angles at a minimum. Tying everything together is a heavy duty full width belly skid plate that creates a stout subframe and improves offroad protection whether you are charging through the open desert of out on a backcountry trail. A pair of CNC-machined ductile iron steering knuckles are supplied to reposition steering tie rod mount points and integrate with the larger ball joints from the ZR2 A-arms. Top mounted strut spacers are supplied to correctly position the DSSV coilovers to set ride height and achieve clearance throughout suspension travel. At 4in of lift on the ZR2 the front driveline angles begin to be a issue. To correct this BDS supplies a transfer case indexing ring to rotate the transfer case and improve front driveshaft operating angle to allow the re-installation of the factory driveshafts. Out back BDS supplies a 4in block and u-bolt kit to replace the factory block to level the stance of the Colorado ZR2 while retaining ride quality. Additionally a pair of axle mounted shock relocation brackets are supplied, specially designed for the ZR2 to allow integration with the factory DSSV shocks. As with all BDS suspension lifts, these new Chevy Colorado ZR2 4in lift systems are backed by Factory Protection Plus giving you the confidence to use it and abuse it out on the trail. Take your ZR2 to the next level with BDS Suspension.

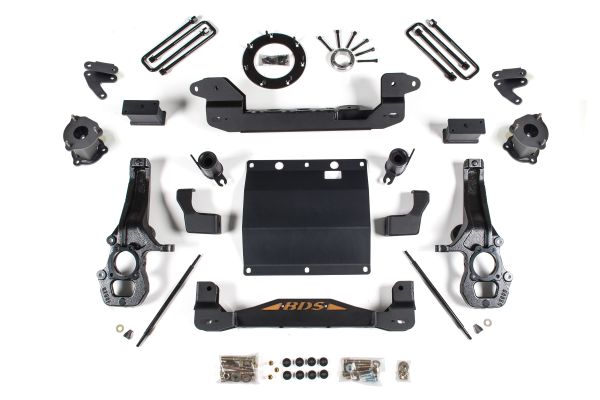

Kit Components

BDS021400: 2017-18 Colorado ZR2 Box Kit 1of5 X1

BDS021401: 2017-18 Colorado ZR2 Box Kit 2of5 X1

BDS021402: 2017-18 Colorado ZR2 Box Kit 3of5 X1

BDS021403: 2017-18 Colorado ZR2 Box Kit 4of5 X1

BDS021404: 2017-18 Colorado ZR2 Box Kit 5of5 X1
