BDS Lift Kit 4in Radius Arm Kit w/NX2 Shocks - Gas

At the heart of this system is a pair of heavy duty radius arms built to withstand whatever abuse you can throw at them. Built from 1-3/4in OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. They incorporate factory style 3-1/4in rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and reposition the front axle to correct caster angle. The additional 4in of lift comes from a pair of full length diesel of gas specific ProRide coil springs. These paired with your choice of BDS NX2 series gas shocks or the precision tuned FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4in thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. Out back a you have the option of a 4.5in fabricated block with integrated bump stop wing is used in place of the factory block to level the stance or upgrade to GlideRide rear leaf springs. These springs integrate a overload leaf for increased load capacity while offering smooth on-road ride quality. Longer black e-coated u-bolts and your choice of NX2 or FOX 2.0 shocks round out this 4in radius arm lift system.

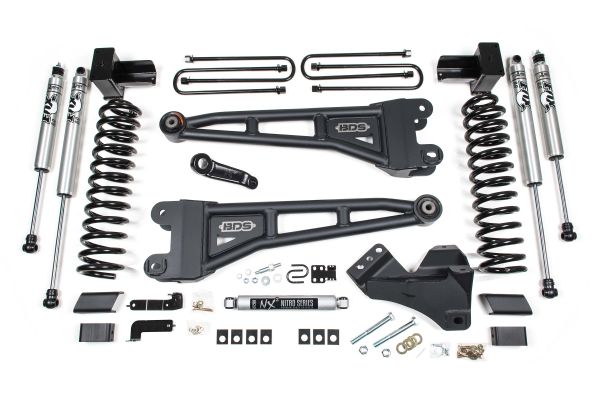

Kit Components

BDS013414: Front Box Kit X1

BDS013526: 5in Rear Block X1

BDS033412: Coil Springs X1

BDS123251: Radius Arm Long Arm Upgrade Kit X1

BDS85431: Steering Stabilizer X1

BDS85700: NX2 Shock Absorber X2

BDS85718: NX2 Shock Absorber X2
