BDS Lift Kit 4in w/Air-Ride & NX2 Shocks

Built on BDSfts tried and true high clearance design these kits correct steering, suspension and driveline geometry for on road comfort, handling and safety. These systems have been engineered and tested to retain full functionality of the factory air ride system allowing you to adjust ride height through the various modes. Up front this 4in system includes a pair of high clearance laser cut crossmembers along with a 3-point differential relocation system and differential skid plate to create a stout subframe for the suspension components to be installed. New ductile iron CNC machined steering knuckles are supplied along with heavy duty tie rod ends to keep allow for ESC system compatibility. Top mounted strut spacers are supplied to allow the use of the air ride front air bag struts along with all the necessary air-line fittings. A billet aluminum driveshaft spacers is supplied to lengthen the factory front driveline along with brake line brackets, sway bar link extensions and all the necessary hardware to complete the install. The rear of the air-ride equipped RAM 1500 mimics the standard RAM 1500 with the exception of adjustable height rear air bags. The additional ride height comes from a pair of 3in top mounted air bag spacers to lift and level the stance. New air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. BDS supplies rear upper control arm relocation brackets to correct the geometry at the taller ride height. A track bar correction bracket is supplied to recenter the rear axle along with new extended length sway bar links to improve stability on and off-road. Rounding out the rear of these air ride kits are brake line relocation brackets, bump stop extensions and your choice of either BDS NX2 gas or upgrade FOX 2.0 performance series gas shocks. This new 4in lift kit corrects the suspension geometry and allow for full use of the ride height adjustability in the various modes to with the base lift set at 4in over. Get more out of your air ride equipped RAM 1500 or Rebel with BDS.

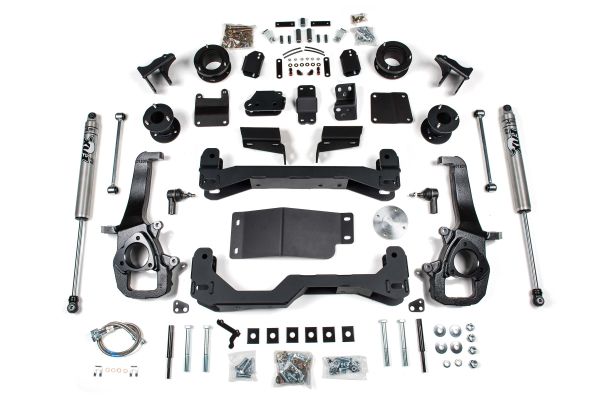

Kit Components

BDS022642: Front Box Kit 1 of 2 X1

BDS022643: Front Box Kit 2 of 2 X1

BDS022307: Rear Box Kit X1

BDS022308: Air Ride Box Kit X1

BDS022632: Driver Side Knuckle Box Kit X1

BDS022633: Passenger Side Knuckle Box Kit X1

BDS85806: NX2 Shock Absorber X2
