BDS Lift Kit 4in w/FOX Shocks

Designed to maintain on-road handling while improving offroad capability with room for 37in tires. At the heart of these new systems are dual rate coil springs designed for a full 4in of lift on the power wagon along with your choice of NX2 gas or FOX 2.0 performance gas shocks for impressive ride quality and performance. The factory radius arms are repositioned using a pair of specially designed 1/4in thick drop brackets that key off the factory mounts for strength and rigidity. Steering correction comes from a forged drop pitman arm that is used in combination with a heavy duty track bar drop bracket to keep the steering in phase for predictable handling. Also supplied for the front are replacement bump stops, sway bar relocation to retain functionality of the factory electronic sway bar disconnect and brake line relocation brackets. At 4in of lift the transfer case is indexed to allow the front driveshaft to function properly. BDS supplies a high strength indexing ring with ARP studs along with a replacement high clearance transmission crossmember and billet driveshaft extension to allow the factory driveshafts to be reinstalled with the kit. In the rear a pair of replacement HD dual rate coil springs are supplied to level the stance while providing a great ride and maintain tow capacity. These springs paired your choice of NX2 gas or FOX 2.0 performance gas shocks along with extended sway bar links, a heavy duty rear track bar bracket and all the necessary hardware rounds out this 4in lift system for the late model Power Wagon.

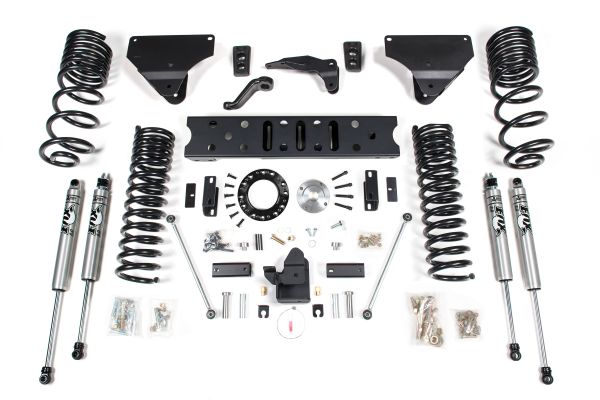

Kit Components

BDS012256: 14-up Ram Power Wagon Rear Box Kit X1

BDS012402: 14-up Ram Power Wagon Front Box Kit X1

BDS032401: 13-18 3500 - 14-18 2500 Ram Coils 4in Di X1

BDS122616: Ram T-Case Index - Gas - 6 Bolt X1

FOX98224700: FOX 2.0 Shock Absorber X2

FOX98224753: FOX 2.0 Shock Absorber X2
