BDS Lift Kit 4in w/Fox Shocks w/FOX Shocks

These 4in complete systems are designed for on-road handling and off-road performance. This 4in IFS System utilizes heavy duty front & rear crossmembers coupled with a full width belly skidplate and multipoint differential relocation brackets to create a solid subframe to mount the suspension components and improved offroad protection. These combined with the high strength ductile iron steering knuckles offer optional on-road handling with ESC System compatibility along with improved ground clearance for better offroad performance. Additionally this kit includes bump stop brackets, sway bar relocation, lower control arm cams and brake line brackets. Top mounted strut spacers are supplied to set ride height and allow easy installation. In the rear 3in lift blocks are supplied along with longer u-bolts and brake line brackets to set the rear up and level out the stance. Finishing off the rear are FOX 2.0 performance series IFP gas shocks. This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

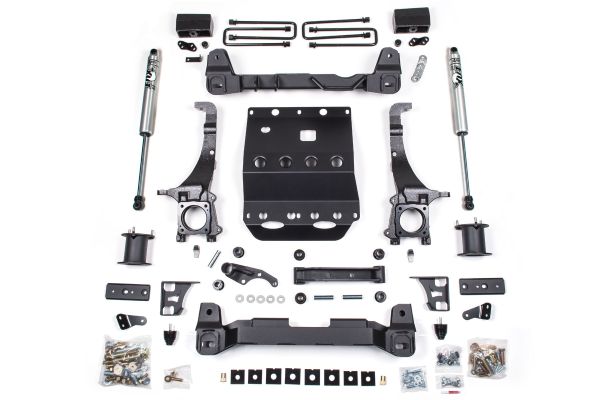

Kit Components

BDS028600: Front Box Kit 1 of 4 X1

BDS028621: Front Box Kit 2 of 4 X1

BDS028612: Front Box Kit 3 of 4 X1

BDS028403: Front Box Kit 4 of 4 X1

BDS018318: 3in Rear Block X1

FOX98224954: FOX 2.0 Shock Absorber X2
