BDS Lift Kit 5.5in w/FOX Shocks

The new BDS Suspension 5.5in suspension system is design with our tried-and-true steering knuckle and crossmember technology. The system has passed FMVSS126 testing for stability control compliance. Heavy-duty fabricated crossmembers drop the lower control arms, perfectly matching the massive ductile cast iron extended steering knuckles to gain 5.5in of lift. The crossmembers utilize the factory alignment eccentrics and tie together with a full-width skid plate. The skid plate protects the relocated differential that has been lowered and positioned to work precisely with the included transfer case indexing ring, allowing for the factory front drive shaft to be used. The factory front struts are relocated using upper strut extensions that do not require disassembly of the strut. Front bump stop extension and sway bar links are included as well as new Moog tie rod ends to properly set alignment without trimming the inner tie rods.

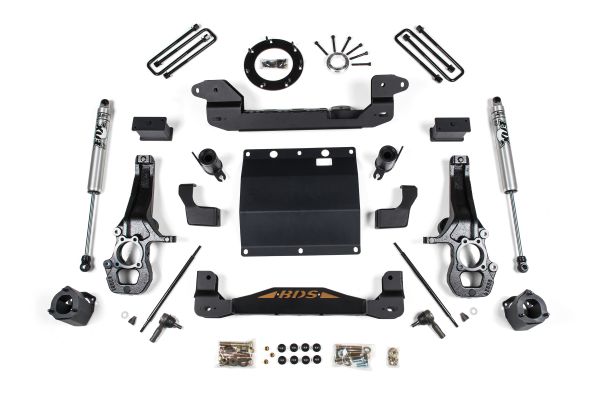

Kit Components

BDS011406: 2015 Colorado 4in Rear Block Box Kit X1

BDS021670: 2015 Colorado Front Box Kit 1of4 X1

BDS021671: 2015 Colorado Front Box Kit 2of4 X1

BDS021672: 2015 Colorado Front Box Kit 3of4 X1

BDS021673: 2015 Colorado Front Box Kit 4of4 X1

BDS021674: 2015 Colorado 5.5in Strut Spacer Box Kit X1

FOX98224758: FOX 2.0 Shock Absorber X2
