BDS Lift Kit 6in w/Magnaride

BDS Suspension now offers 6in Lift Systems for the 2014-2017 GMC Denali 1500 trucks with factory installed Magneride magnetic ride control system. These new suspension systems utilize the tried and true high-clearance IFS design that has made BDS the preferred suspension lift for late model GM trucks. At the core of these new lift systems BDS supplies a pair of 1/4in thick laser cut high clearance crossmembers and differential skid plate to reposition the lower arms and add protection. These combined with the CNC machined ductile iron replacement steering knuckles creates a stout subframe to correct suspension and steering geometry for ESC system compatibility. Up front the kits use a multipoint differential relocation kit and CV spacers to securely reposition the front differential to correct CV axle angle and allow use of the stock front driveshaft. Top mounted strut spacers are used to retain the Magneride struts as well as new sensor brackets to properly reposition the Magneride sensor arms. Also included for the front are replacement tie rod ends, longer sway bar links, brake line brackets and a BDS front skid plate. In the rear BDS uses 5in cast iron lift blocks and longer u-bolts in place of the factory block kit to net 4in of lift for a level stance. Rear shock relocation brackets are used at the axle mount to retain full functionality of the Magneride rear monotube shocks. The kits come finished in a durable textured black powdercoat, all hardware is provided along with step-by-step installation instructions. Improve the look and performance of your late model GMC Denali 1500 with room for up to 35in tires with this new lift system from BDS Suspension.

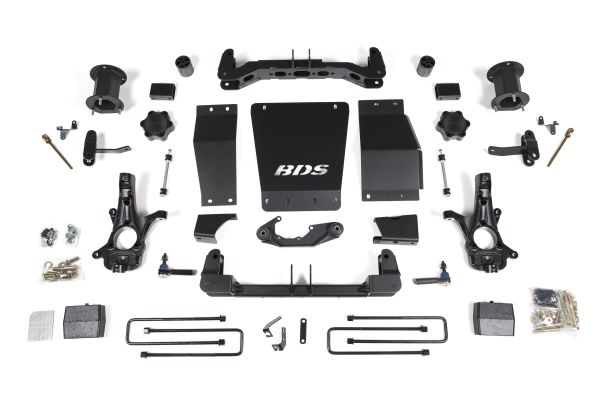

Kit Components

BDS011505: 2014 Chevy 1500 5in Rear Block Kit X1

BDS021660: 14-18 GM 1500 - 15-19 GM SUV Knuckle Box X1

BDS021662: 14-18 GM 1500 - 15-19 GM SUV 1500 6in Frt X1

BDS021663: 14-18 GM 1500 15-19 GM SUV 6in Frt Box Kit X1

BDS121655: 2014-up GMC Denali Magneride Box Kit X1
