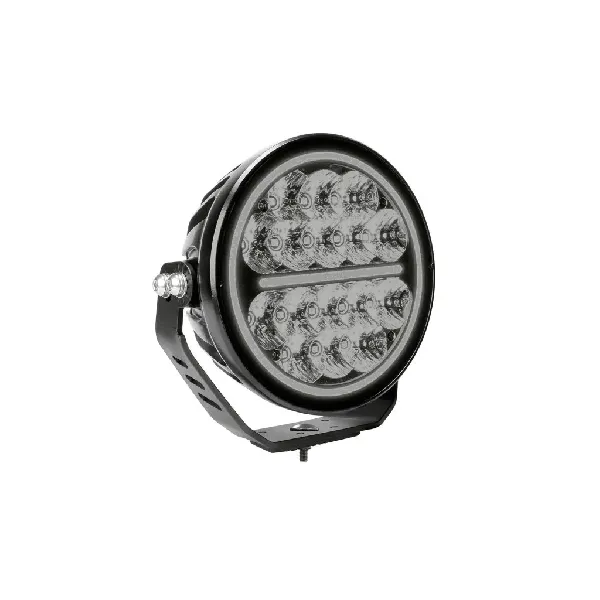

Brightsource Driving Light 7in Round Siberia Bush Ranger - Yellow Lens

Siberia Series Bush Ranger LED Lights

The Siberia Series Bush Ranger continues the tradition of innovation with its 7” and 9” round lights, featuring two separate lighting functions beautifully positioned in the housing.

These lights have a yellow lens with an E-approved, combo driving light pattern, providing exceptional effectiveness in fog, snow, sleet, or heavy rain. The bright yellow beam cuts through inclement weather and reduces headlight glare. The combination pattern delivers both long range and side-of-the-road illumination for improved road/trail safety. The dual-color position light allows you to choose between cool white and rich amber, offering customization options for your vehicle.

Heavy-duty brackets and stainless hardware are included for easy installation. Consider adding a harness adapter (PN 270438) for seamless integration with a BrightSource DT2 wiring harness.

Features:

• Yellow Lens
• E-Approved
• Dual Position Light (Amber & White)
• Optimized Light Beam

Specifications:

• Type of lamp: LED
• Type of LED: Osram
• PCS LED´s: 16
• Voltage (V DC): 9-32V DC
• Theoretical effect (w) 12V: 80
• Theoretical effect (w) 24V: 80
• Consumption (w) 12V: 69.1
• Consumption (w) 24V: 70.1
• Theoretical lumen: 9600
• Actual lumen: 3584
• 1 LUX @ m: 346
• Kelvin: 3568
• IP-class: 67/69K
• Colour housing: Black
• Colour lens: Yellow
• Colour LED´s: White and Amber
• Beam pattern: Flood
• Position light: Yes, amber and white
• Connection: DT-4
• Cable length (mm): 500
• Material bracket: Stainless steel
• Material housing/chassi: Aluminium
• Material lens: Polycarbonate
• Length (mm): 178
• Depth (mm): 78.2
• Height (mm): 178
• Height including bracket (mm): 194.7
• Diameter (mm): 178
• Operating temperature: -20°C – +45°C
• E-approved: Yes, according to regulation ECE R112 R7
• Reference number: 20
• EMC: ECE R10
• 3 Year Function Warranty
