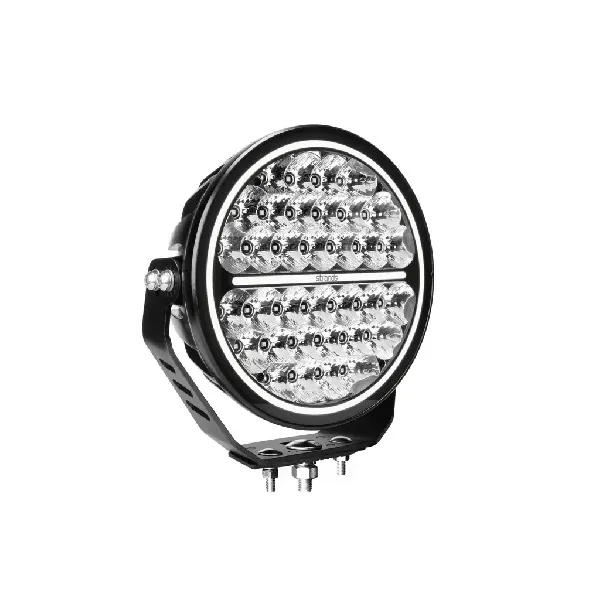

Brightsource Driving Light 9in Round Siberia Night Ranger - Clear Lens

Siberia Series Night Ranger

The Siberia Series Night Ranger continues the tradition of innovation with 7" and 9" round lights that incorporate 2 separate lighting functions - a driving light and a position light - both beautifully positioned in the housing.

Key Features:

• E-Approved
• Dual Position Light (Amber & White)
• Optimized Light Beam

Specifications:

• Type of lamp: LED
• Type of LED: Osram
• PCS LED's: 34
• Voltage (V DC): 9-32V DC
• Theoretical effect (w) 12V: 170
• Theoretical effect (w) 24V: 170
• Consumption (w) 12V: 145.3
• Consumption (w) 24V: 144.6
• Theoretical lumen: 20400
• Actual lumen: 13377
• 1 LUX @ m: 465
• Kelvin: 6000
• IP-class: 67/69K
• Colour housing: Black
• Colour lens: Clear
• Colour LED's: White and Amber
• Beam pattern: Flood
• Position light: Yes, amber and white
• Connection: DT-4
• Cable length (mm): 500
• Material bracket: Stainless steel
• Material housing/chassi: Aluminium
• Material lens: Polycarbonate
• Length (mm): 228.6
• Depth (mm): 86.7
• Height (mm): 228.6
• Height including bracket (mm): 249.3
• Diameter (mm): 228.6
• Operating temperature: -20°C – +45°C
• E-approved: Yes, according to regulation ECE R112 R7
• Reference number: 30
• EMC: ECE R10
• 3 Year Function Warranty
