Brightsource LED Light Bar 22in Siberia Single Row

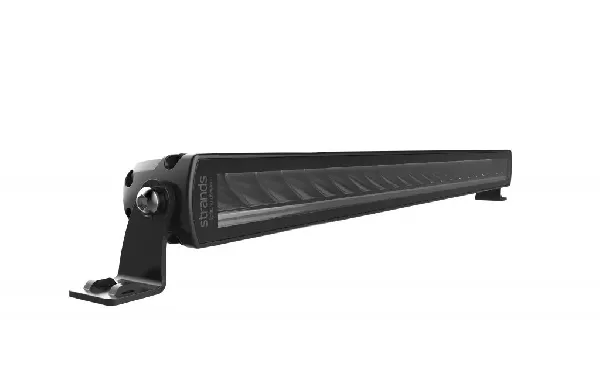

Siberia LED Light Bar

The Siberia LED Light Bar is designed to provide exceptional range and side-of-the-road illumination, enhancing road/trail safety. Featuring a combo driving light pattern and dual-color position light, this bar offers versatility and customization for your vehicle.

Included in the package are side mount and base mount brackets for easy installation. The LED light bar comes with a DT 4 connector, and you can consider adding a harness adapter (PN 270438) to connect with a BrightSource wiring harness (PN 72999), both sold separately.

The BrightSource harness is a plug and play solution with a 15A relay and switch to light up a single light through a 2 pin DT connector, which plugs into the female end of the harness adapter. The harness adapter has a white and yellow wire to power the white and amber position function, wherever you choose to source that power.

Specifications:

• Type of lamp: LED
• Type of LED: Osram
• PCS LED´s: 20
• Voltage (V DC): 10-40V DC
• Consumption (w) 12V: 59
• Consumption (w) 24V: 59
• Theoretical lumen: 8000
• Actual lumen: 4254
• 1 LUX @ m: 447
• Kelvin: 6000
• IP-class: 67/69K
• Colour housing: Black
• Colour lens: Clear
• Colour LED´s: White
• Beam pattern: Combo
• Position light: Yes, white and amber
• Connection: DT-4
• Cable length (mm): 500
• Material bracket: Stainless steel
• Material housing/chassi: Aluminium
• Material lens: Polycarbonate
• Length (mm): 555.6
• Depth (mm): 55.5
• Height (mm): 45
• Height including bracket (mm): 65
• Operating temperature: -20°C – +45°C
• E-approved: Yes, according to regulation ECE R112
• Reference number: 50
• EMC: ECE R10
• 3 Year Function Warranty
