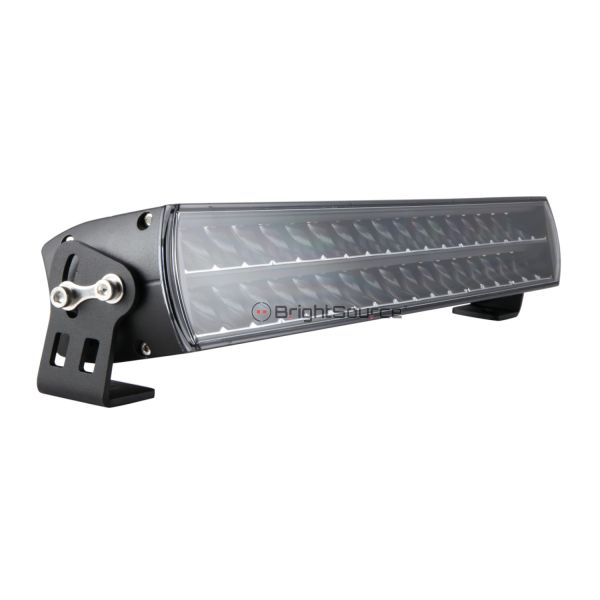

Brightsource Light Bar 20in 180W Double Slim Style Side Reflecting Combo Pattern
Light Bar 20 in. 180W Double Slim Style Side Reflecting Combo Pattern
CA$463.99
Ready to Ship
Part#:
LI772202
Pick-up in store to earn an extra discount
Financing available with Flexiti
Request an install quote at check-out
See our work in our Install Gallery
Free shipping on orders over $99 (some exclusions)
Special Features
Double Row Slim
Side Reflecting Optic System
Anti-Rust, UV Resistant, Shock Resistant
Reverse Polarity Protection
Over-Under Voltage Protection
Electronic Thermal Management
Waterproof Deutsch Connector
5 Year Limited Warranty.
Specifications
LED: 36 x 5W LG
Beam Pattern: Combination
Colour Temperature: 6500K
Luminous Flux: 16400 (Raw) 14000 (Effective)
Lux: 1 Lux @ 607M
IP Rating: IP68-69K
Voltage: DC9-30V
Wattage: 180W
Amperage 12V/24V: 12.5A/5.9A
Temperature Range: -40 +60C
Anti-Icing Technology: No
Side Reflecting Optic System: Yes
Housing Material: ADC12 Aluminum with Anodized Polyester Powdercoat
Lens Material: Lexan Polycarbonate
Mounting Bracket: Side and Bottom
Size: 525 x 68 x 80mm (20.7 x 2.7 x 3.15?)
Harness: Sold Separately (PN 72999)
LED Lifespan: 50,000+ hrs
Certification: ROHS
Warranty: 5 Year Limited
Double Row Slim
Side Reflecting Optic System
Anti-Rust, UV Resistant, Shock Resistant
Reverse Polarity Protection
Over-Under Voltage Protection
Electronic Thermal Management
Waterproof Deutsch Connector
5 Year Limited Warranty.
Specifications
LED: 36 x 5W LG
Beam Pattern: Combination
Colour Temperature: 6500K
Luminous Flux: 16400 (Raw) 14000 (Effective)
Lux: 1 Lux @ 607M
IP Rating: IP68-69K
Voltage: DC9-30V
Wattage: 180W
Amperage 12V/24V: 12.5A/5.9A
Temperature Range: -40 +60C
Anti-Icing Technology: No
Side Reflecting Optic System: Yes
Housing Material: ADC12 Aluminum with Anodized Polyester Powdercoat
Lens Material: Lexan Polycarbonate
Mounting Bracket: Side and Bottom
Size: 525 x 68 x 80mm (20.7 x 2.7 x 3.15?)
Harness: Sold Separately (PN 72999)
LED Lifespan: 50,000+ hrs
Certification: ROHS
Warranty: 5 Year Limited
