Trail Gear 5" Rear Leaf Spring Kit

5" Rear Leaf Spring Kit
Special Price CA$1,187.62 Regular Price CA$1,397.20
Ready to Ship
Part#:
TG110014-1-KIT

Earn an extra discount by choosing to do an in store pick-up. Stores located in North Vancouver. Surrey, Prince George, Grande Prairie, Edson, Edmonton, Red Deer and Calgary.

Get FREE SHIPPING on orders over $99. Over weight and over sized products excluded. Some remote locations excluded. See our shipping page for exceptions.

Professional Installation available.

Request an install quote on this part at check-out

or call 1-800-416-7656 to book

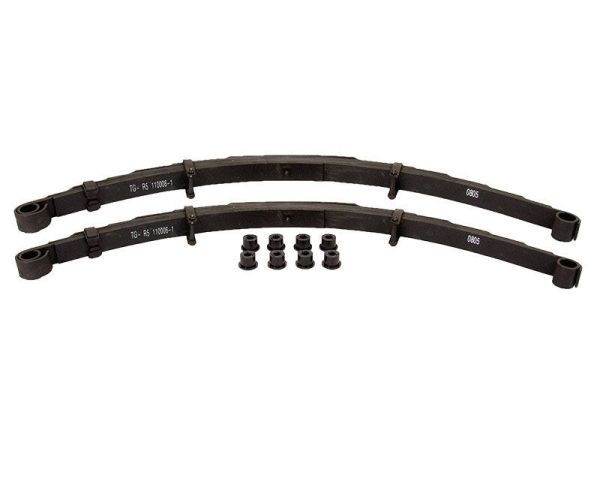

Rear Leaf Springs

Our rear springs feature a full military wrap on the front and the 1/4 wrap on the rear. Spring rate is 235 lbs per inch. Leaf pack is 7 leaves plus a special torque leaf to reduce axle wrap. Springs are 56 5/8" long as measured along the top leaf. Pin to center of front mount is 27 1/2", pin to center of rear mount is 29 5/8". New poly bushings are included with springs. These springs are longer than stock and will require hanger relocation.

Available in the following sizes:

  • 3" Springs, Rear, 110016-1-KIT
  • 4" Springs, Rear, 110012-1-KIT
  • 5" Springs, Rear, 110014-1-KIT
