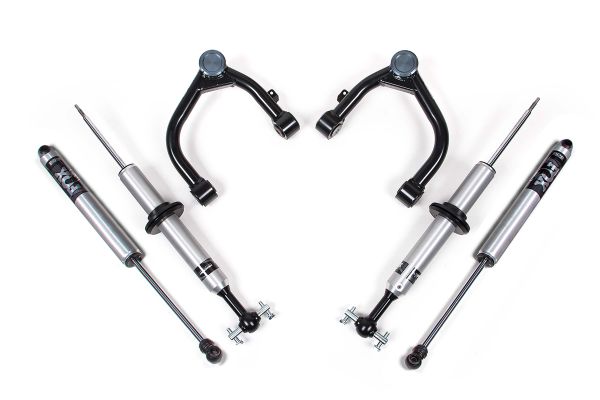

BDS Lift Kit 2in Coilover Kit w/FOX Shocks

At the heart of these 2in coilover systems are a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. The non-reservoir snap ring coilovers utilize a collar to allow for up to 2in of lift when used with the factory coil springs and top plate. Also available are fully assembled Fox 2.0 Performance Series coilovers that are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment.They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0in extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, and a 5/8in hard chrome plated heat treated alloy shaft. Also supplied as part of these complete 2in lift systems are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5in OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. In the rear are a pair of specially tuned FOX 2.0 Performance Series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad and to allow clearance for larger tires.

Kit Components

BDS121253: Main Box Kit X1

FOX98224719: FOX 2.0 Shock Absorber X2

FOX98562012: FOX 2.0 Shock Absorber X2
