BDS Lift Kit 2in Coilover Kit w/FOX Shocks

These 2in FOX coilover systems are designed to build on the stout factory front suspension design on the Chevy/GMC 1500 trucks and take performance to the next level while leveling out the stance. More that just a leveling kit, at the heart of this 2in system is a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0in extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8in hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation. Also supplied for the front are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5in tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks are supplied to match the front performance.

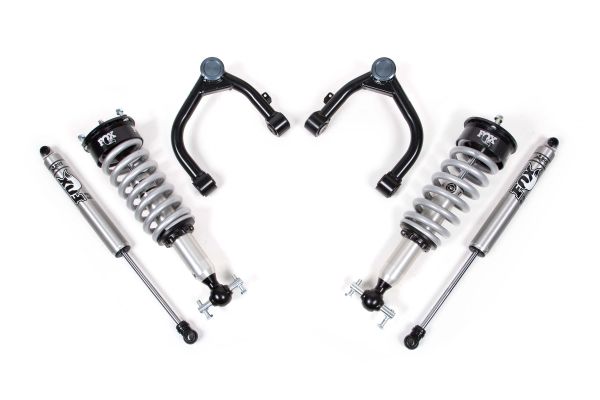

Kit Components

BDS121260: UCA Box Kit X1

FOX98224719: FOX 2.0 Shock Absorber X2

FOX98502134: FOX 2.0 Shock Absorber X2
