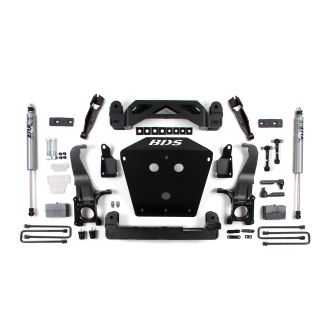

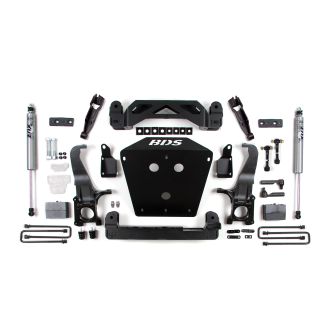

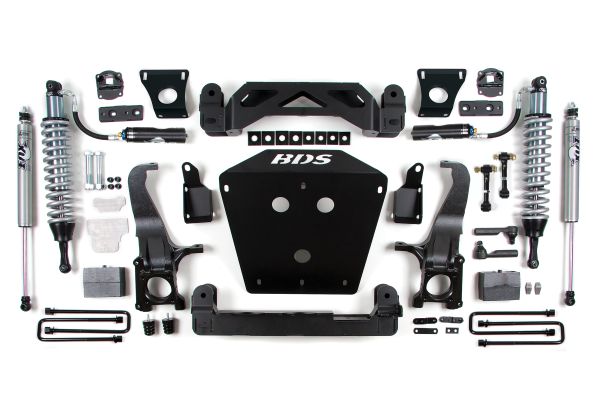

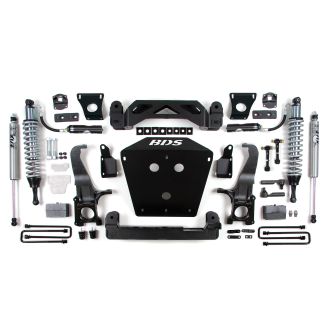

BDS Lift Kit 7in (16-20 Toyota Tundra)

Through a collaborative effort between BDS Suspension and Fox Racing, this 7in system for 2016-17 Tundras incorperates the same quality design and performance enhancements as our popular 07-15 system.Featuring Fox 2.5in coil-over remote reservoir shocks, this system has been rigorously tested to maximize travel and performance on and off the pavement. This system utilizes BDS proven design standards including one-piece front & rear crossmembers coupled with precision machined ductile cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The knuckles are also considerably more robust in both the mass and strength categories over the rather light-duty stock components. The BDS High Clearance crossmembers are built from 1/4in laser cut steel and maximize ground clearance and strength. The relocated differential is protected by a skid plate tying the crossmemember together. The system also includes new sway bar links to correct the sway bar geometry. The rear of the kit comes all the components necessary to level the truck and center the axle in the wheel well. This includes a 4in block, u-bolts and brake line relocation brackets. BDS by Fox 2.0 series rear shocks come standard in this system. Nothing complements this BDS Suspension better than the race proven design of Fox 2.5in remote reservoir coil-over front shocks. These have been specifically engineered to fit the BDS Suspension system and feature an external reservoir for increased oil cooling capacity and nitrogen volume for a more consistent and comfortable ride. These have also been pre-set by BDS to the correct ride height for an easy installation, but can also be fined tuned to your liking.

Kit Components

BDS018409: 07-09 Tundra Rear X1

BDS028701: 07-09 Tundra Box 2 Of 5 X1

BDS028702: 07-09 Tundra Box 3 Of 5 X1

BDS028703: 07-09 Tundra Box 4 Of 5 X1

BDS028710: 2016 Tundra Box Kit (1of5) X1

BDS128700: 07-16 Tundra Fox C/O Mounting Kit X1

FOX88302057: BDS 07-20 Toyota Tundra Front Coilover X1

FOX98224952: Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1 X2
