BDS Lift Kit 3in Radius Arm Kit W/Rear Air Ride Amd - Diesel w/FOX Shocks

Designed to improve the looks and performance of your new RAM, these kits join existing 2in, 4in, and 6in options and are offered as a complete system to enhance offroad capability, maintain on-road handling and clear larger wheels/tires. Up front these systems use a pair of (diesel specific) progressive rate 3in coil springs to provide the extra height and offer controlled performance in the harshest of terrains. A high strength adjustable track bar with center pinch-bolt turnbuckle is supplied to re-center the front axle. A pair of extended length sway bar links correct the OE sway bar operating angle for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance. In the rear, heavy duty air bag spacer brackets are used to level the stance along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks.

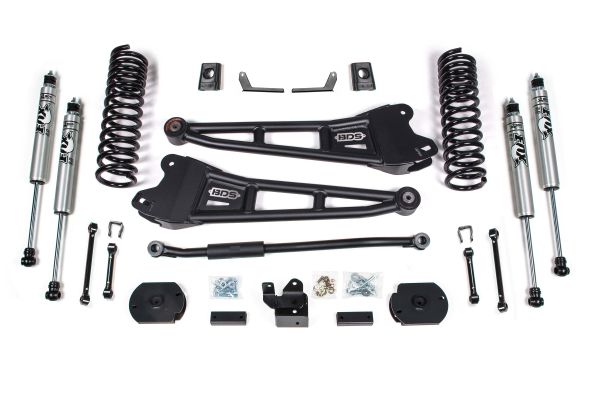

Kit Components

BDS012257: 2.5in Rear Air Ride Box Kit X1

BDS012312: Front Box Kit X1

BDS032302: Front Coil Springs X1

BDS122321: Radius Arm Kit X1

FOX98224700: FOX 2.0 Shock Absorber X2

FOX98224753: FOX 2.0 Shock Absorber X2
