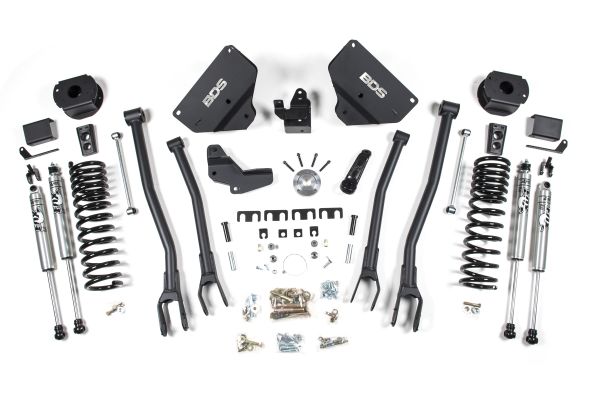

BDS Lift Kit 4in Diesel 4-Link Kit w/Air Bag

The heart of this system is the 4-link conversion that replaces the factory radius arm. Key benefits include to doing this include increased stability, wheel travel, and improved handling across all terrains. The 4-link design limits caster change to less than 1-degree of change throughout wheel travel for better handling, steering control, and overall driveability. Included are a pair of massive frame-mounted brackets precision welded and engineered to locate the new upper and lower control arms to create the optimal suspension geometry for late model RAM trucks. The 4-link brackets are fabricated from 1/4in thick steel and wrap around the frame as well as the factory radius arm brackets to create an extremely sturdy mount for the new arms. Removal of the factory radius arm brackets is not required allow the brackets to stay intact to speed up the installation time and make these kits reversible. The upper and lower control arms are built from 2in OD x 3/16in wall DOM tubing for the strength to take any abuse you can throw at them. They utilize large 2.5in OD polyurethane bushings to isolate road vibrations and are formed inward to allow for extra tire clearance while repositioning the front axle slightly forward for increase tire clearance to the backside of the front fenders when turned. These arms are finished in a durable textured black powder coating and use grease fittings for easy servicing. The additional front height comes from a pair of specially designed progressive rate ProRide coil springs. The 4in coils have been engineered and tested to improve the ride quality and performance across all terrains while holding up to the rigors that 3/4-ton truck owners demand. A heavy duty track bar relocation bracket is included to recenter the front axle once lifted as well as a forged drop pitman arm to correct steering angles. Sway bar relocation brackets are used to reposition the front sway bar assembly and the supplied brake line brackets allow for the easy adjustment for the stock lines to be reused with the lift kit. In the rear, 1/4in steel, 3.5in tall gusseted air bag spacers are used along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion.

Kit Components

BDS012359: 14-18 Ram 2500 3.5in Rear AirRide Box Kit X1

BDS012403: 2013-2018 Ram 3500 4-Link Box Kit (2of2) X1

BDS012414: 2013-18 Ram 4-Link Box Kit (1of2) X1

BDS032401: 13-18 3500 - 14-18 2500 Ram Coils 4in Di X1

BDS85752: NX2 Shock Absorber X2

BDS85764: Shock- 24.80 x 14.80 x 2 - Special/EB1 X2
