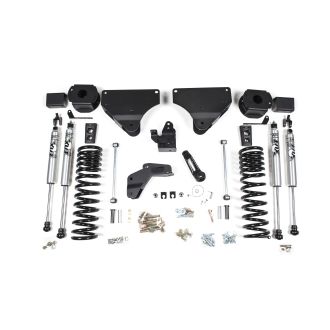

BDS Lift Kit 6in Diesel

This new suspension system for the redesigned 2014-17 Ram 2500 trucks uses the same front components as the recently released 6in system for the 2013 Ram 3500s. As with the 3500s, the radius arms are relocated with a uniquely designed bracket that mixes the ease of installation you get with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket. The new relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail. At the frame, the new mount is fastened with specially machined sleeves and threaded inserts. The threaded inserts (2) do require a minor amount of welding in order to provide the strongest possible connection. This portion of the installation can be completed without welding and then transported to a weld shop to be welded if necessary. In addition to the radius arm relocation, the kit includes everything else to properly lift the 2014-17 Ram 2500s. Track bar relocation, dropped pitman arm and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate, full replacement coils springs. Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 3/4 ton truck and work properly with the unique factory coil mounts at the frame and axle. The rear portion of the new 2500 is where the similarities to the 3500 trucks end. The 2014-17 2500s have a rear multi-link, coil spring suspension similar in design to that of the 09-up Ram 1500s. For this particular new system, the rear lift is accomplished with massive new 4.5in progressive rate coil springs. These new springs provide an amazing ride and are designed to stand up to any load the new 3/4 ton trucks were built to handle. An axle mounted track bar relocation bracket repositions the rear track bar and centers the axle. Extended sway bar links keep the rear sway bar at the optimum operating angle. Replacement rear shocks round out the rear lift and provide that desired level stance.

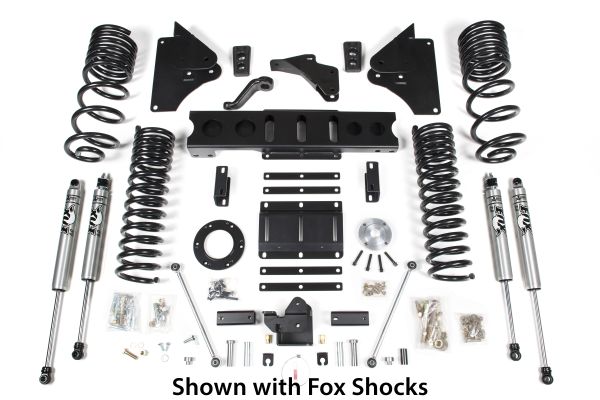

Kit Components

BDS012458: 14-18 Ram 2500 4.5in Rear Coil Box Kit X1

BDS012610: 13 3500 Ram 6in Front Box Kit X1

BDS032602: 13-18 Ram 3500 - 14-18 Ram 2500 6in Coil X1

BDS122623: 13 3500/14 2500 Ram T-Case Index- 6 Bolt X1

BDS85752: NX2 Shock Absorber X2

BDS85756: NX2 Shock Absorber X2
