BDS Lift Kit 4in Diesel Long Arm Kit w/2 Leaf Main

BDSfts tried and true 4-link conversion offering improved stability, strength and caster control during wheel travel. The 4-link brackets are built from 1/4in steel and key off the factory frame bracket and transmission crossmember for extra strength. Full length 4in ProRide coil springs are used for the additional ride height and are paired with your choice of BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets. In the rear of these 4in systems BDS offers multiple lift options for both the OE 2-leaf main spring pack and OE 3-leaf main spring pack equipped trucks. The first option is a 5in replacement block and u-bolt kit for the 3-leaf trucks. The blocks are built from high strength, fully boxed steel with an integrated bump stop wing. Both the blocks and u-bolts are finished in a durable black e-coat finish. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. These new 4in 4-link systems allow for clearance of up to 37in tires. Take your 2017 Super Duty to the next level with BDS Suspension.

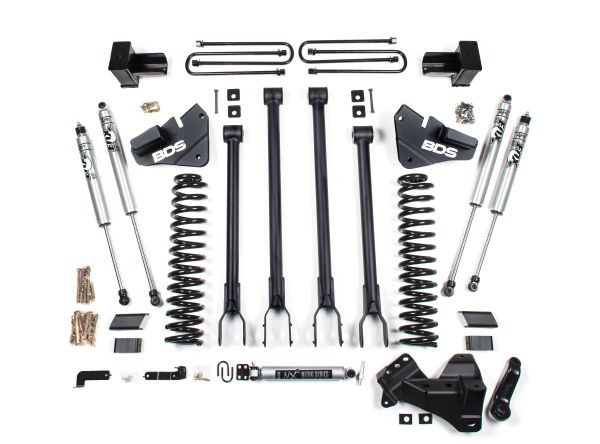

Kit Components

BDS013422: 17-19 Super Duty 4in 4-Link Box Kit 2of2 X1

BDS013517: 5in Rear Block Kit - 2 Leaf Main X1

BDS013601: 17-19 Super Duty 4-Link Box Kit 1of2 X1

BDS033411: Coil Spring Box Kit (Diesel) X1

BDS85431: NX2 Single Stabilizer (BDS Only) X1

BDS85700: BDS NX2 Shock Absorber X2

BDS85718: BDS NX2 Shock X2
