BDS Lift Kit 6in Diesel Long Arm Kit w/2 Leaf Main w/FOX Shocks

BDSfts tried and true 4-link conversion offering improved stability, strength and caster control during wheel travel. The 4-link brackets are built from 1/4in steel and key off the factory frame bracket and transmission crossmember for extra strength. Full length 6in ProRide coil springs are used for the additional ride height and are paired with your choice of BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets. The 2017 models use a new front driveline design that requires correction at 6in of lift and above to allow for use of 4WD at any speed. To do this BDS supplies a high strength transfer case indexing ring to rotate the front output of the transfer case down to improve the front driveline operating angle. The indexing ring uses ARP studs and includes new mounting hardware. Also supplied is a heavy duty replacement transmission crossmember to allow additional clearance. In the rear of these 6in systems BDS offers multiple lift options for both the OE 2-leaf main spring pack and OE 3-leaf main spring pack equipped trucks. The first option is a 6in replacement block and u-bolt kit for the 3-leaf trucks. The blocks are built from high strength, fully boxed steel with an integrated bump stop wing. Both the blocks and u-bolts are finished in a durable black e-coat finish. In addition to the block kit, the 2-leaf trucks receive an add-a-leaf to level the stance. The second option for the rear are full replacement BDS Glideride leaf springs to provide the lift needed to level the stance. These springs are a 4-leaf design with integrated overload leaf for extra load capacity. They come fully assembled with bushings installed for ease installation and a smooth ride on and off-road. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. These new 6in 4-link systems allow for clearance of up to 38in tires. Take your 2017 Super Duty to the next level with BDS Suspension.

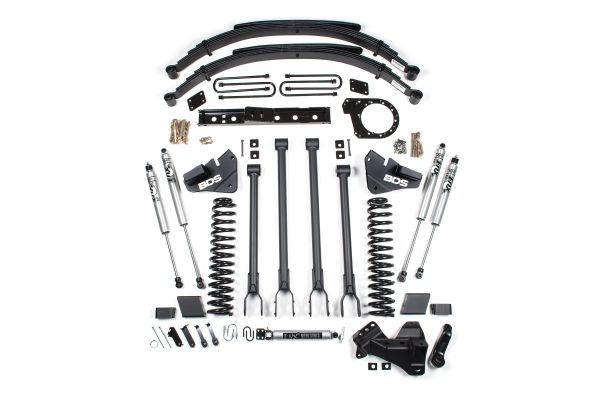

Kit Components

BDS013219: 17-19 Super Duty Add-A-Leaf Kit X1

BDS013601: 17-19 Super Duty 4-Link Box Kit 1of2 X1

BDS013602: 17-19 Super Duty 6in 4-Link Box Kit 2of2 X1

BDS013607: 17-19 Super Duty Rear 6in Block Kit X1

BDS033611: 05-up Superduty 6 In Diesel Coils X1

BDS123605: 17-19 SD T-Case Indexing Kit- DSL X1

BDS85431: NX2 Single Stabilizer (BDS Only) X1

FOX98224718: FOX 2.0 Shock Absorber X2

FOX98224750: FOX 2.0 Shock Absorber X2
