BDS Lift Kit 8in Diesel 4-Link Kit w/FOX Shocks

BDSfts tried and true 4-link conversion offering improved stability, strength and caster control during wheel travel. The 4-link brackets are built from 1/4in steel and key off the factory frame bracket and transmission crossmember for extra strength. Full length 6in ProRide coil springs are used for the additional ride height and are paired with your choice of BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets. The 2017 models use a new front driveline design that requires correction at 8in of lift and above to allow for use of 4WD at any speed. To do this BDS supplies a high strength transfer case indexing ring to rotate the front output of the transfer case down to improve the front driveline operating angle. The indexing ring uses ARP studs and includes new mounting hardware. Also supplied is a heavy duty replacement transmission crossmember to allow additional clearance. The rear is lifted with full replacement BDS Glideride leaf springs to provide the lift needed to level the stance. These springs are a 4-leaf design with integrated overload leaf for extra load capacity. They come fully assembled with bushings installed for ease installation and a smooth ride on and off-road. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance. These new 8in 4-link systems allow for clearance of up to 40in tires. Take your 2017 Super Duty to the next level with BDS Suspension.

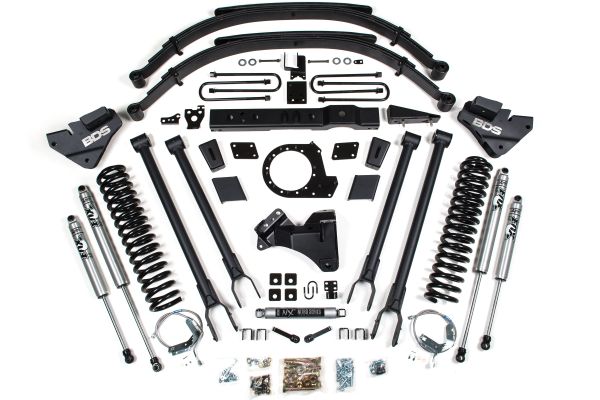

Kit Components

BDS003839: 2017 F250/F350 8in Rear Leaf Spring X2

BDS013601: 17-19 Super Duty 4-Link Box Kit 1of2 X1

BDS013801: 2017 Super Duty 8in Front Box Kit X1

BDS013809: 2017 Super Duty 8in Rear Box Kit X1

BDS033811: 8in F250, F350 Coil Springs -diesel X1

BDS123615: 2017 Super Duty T-Case Index - 8in Dsl X1

BDS85431: NX2 Single Stabilizer (BDS Only) X1

FOX98224721: FOX 2.0 Shock Absorber X2

FOX98224779: FOX 2.0 Shock Absorber X2
