BDS Lift Kit 4in 4-Link System w/Air Fox Shocks Gas

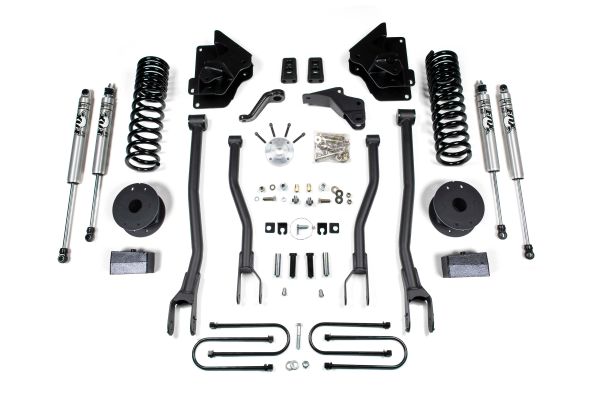

These kits are designed to convert the factory radius arm over to a stronger 4-link design offering improved stability, handling and articulation. The kit is designed with 1/4in fabricated 4-link brackets that key into the factory radius arm pockets for added strength. The 4-link design improves handling and drivability by limiting castor change to less than 1-degree throughout wheel travel. These kits also include gas engine specific progressive rate front ProRide coil springs, front and rear track bar brackets, a forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, rear block and u-bolt kit along with rear air bag lower spacers and sensor brackets. Rounding out the kits is your choice of BDS NX2 series gas shocks or FOX 2.0 performance gas shocks at each corner. These kits allow for 35-37in tires to be installed.

Kit Components

BDS012318: 3in Rear Box Kit X1

BDS012414: Front Box Kit 1 of 2 X1

BDS012403: Front Box Kit 2 of 2 X1

BDS032302: Front Coil Springs X1

FOX98224700: FOX 2.0 Shock Absorber X2

FOX98224758: FOX 2.0 Shock Absorber X2
