BDS Lift Kit 4in Gas w/FOX Shocks

This system is for the all new redesigned front suspension for the Ram heavy duty trucks. The lift is designed around the relocation of the factory radius arm in order to correct suspension and steering geometry to work with 4in of lift. The radius arms are relocated with a uniquely designed bracket that mixes the ease of installation you get with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket. The new relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail. At the frame, the new mount is fastened with specially machined sleeves and threaded inserts. The threaded inserts (2) do require a minor amount of welding in order to provide the strongest possible connection. This portion of the installation can be completed without welding and then transported to a weld shop to be welded if necessary. In addition to the radius arm relocation, the kit includes everything else to properly lift the Ram 3500s. Track bar relocation, dropped pitman arm and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate, full replacement coils springs. Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 1 ton heavy duty truck and work properly with the unique factory coil mounts at the frame and axle. In order to design the best possible coil springs, we found it necessary to develop side-specific coils. Since the coils are driverfts and passengerfts side specific, they are clearly and permanently labeled to ensure they are installed on the correct side. The rear portion of the lift is accomplished with a traditional block and u-bolt setup to give a level stance.

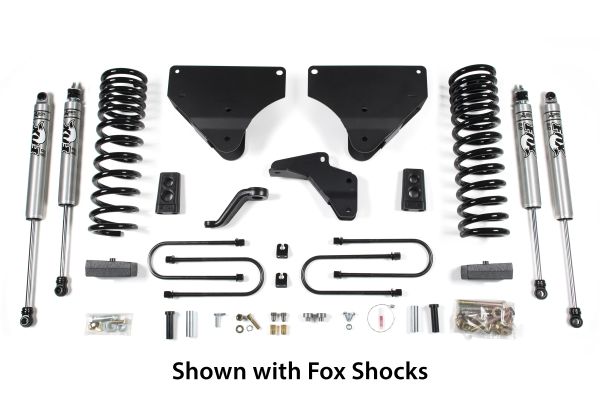

Kit Components

BDS012317: 2013 Ram 3500 3in Rear Box w/4in axle X1

BDS012401: 4in Front Box Kit X1

BDS032302: 4in Coil Box Kit X1

FOX98224700: FOX 2.0 Shock Absorber X2

FOX98224759: FOX 2.0 Shock Absorber X2
