BDS Lift Kit 6in Diesel w/Leaf SpRings w/FOX Shocks

1/4in Steel radius arm relocation brackets reposition the factory radius arms and correct suspension geometry and caster at 6in of lift. These brackets are designed for quick installation and create a stout mounting location for the radius arms by tying into both the factory radius arm frame mount and side of the frame rails. ProRide 6in coil springs have been engineered to improve the ride quality and performance across all terrains. A heavy duty track bar relocation bracket is included to recenter the front axle once lifted and a forged drop pitman arm is included to correct steering angles. Sway bar relocation brackets are used to reposition the front sway bar assembly and the supplied brake line brackets allow for easy adjustment of stock brake lines. Transfer case relocation components allow the front driveshaft to function properly. The transfer case is repositioned by a supplied indexing ring kit to allow clearance and correct the operating angle of the stock front driveshaft. Transmission crossmember and adjustable transmission mounting plate increases clearance. Rear 4.5in progressive rate ProRide coil springs specially engineered to offer impressive ride quality on highway while handling the abuse of heavy loads and offroad adventures. To recenter the rear axle, an axle mounted heavy duty track bar relocation bracket is used along with a pair of extended sway bar links to keep the rear sway bar at the optimum operating angle.

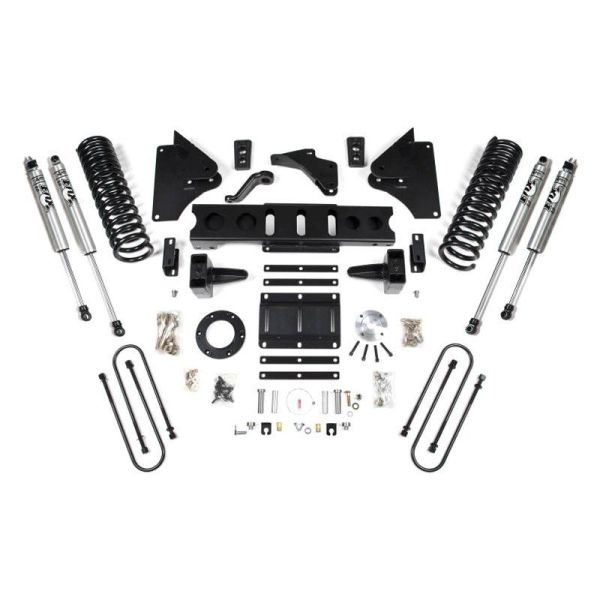

Kit Components

BDS002609: Rear Leaf Spring X2

BDS012610: Box Kit X1

BDS032602: Front Coil Springs X1

BDS122623: Transfer Case Index Ring X1

FOX98224752: FOX 2.0 Shock Absorber X2

FOX98224761: FOX 2.0 Shock Absorber X2

UBT4067: Round U-Bolt X4
