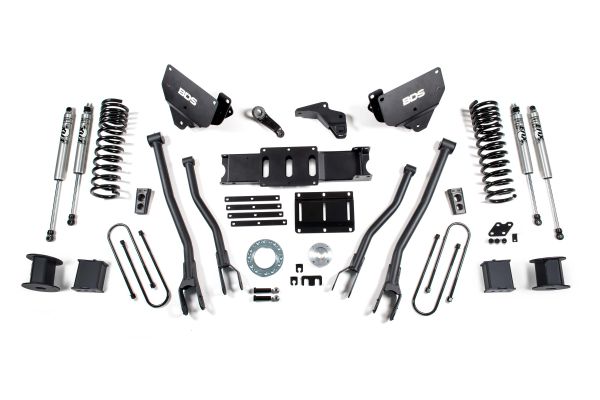

BDS Lift Kit 5.5in 4-Link System w/Air NX2 Shocks Gas 6 Bolt

These lift systems are designed to convert the factory radius arm over to a stronger 4-link design offering improved stability, handling and articulation. The kit is designed with 1/4in fabricated 4-link brackets that key into the factory radius arm pockets for added strength. The 4-link design improves handling and drivability by limiting castor change to less than 1-degree throughout wheel travel. These kits also include 5.5in gas engine specific progressive rate front ProRide coil springs, a heavy duty front track bar bracket, forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, high clearance transmission crossmember and transfer case indexing ring, rear block and u-bolt kit along with rear air bag lower spacers and sensor brackets.

Kit Components

BDS012604: 4-Link Box Kit 1 of 2 X1

BDS012403: 4-Link Box Kit 2 of 2 X1

BDS012318: Rear Box Kit X1

BDS032401: Front Coil Springs X1

BDS85752: NX2 Shock Absorber X2

BDS85769: NX2 Shock Absorber X2
