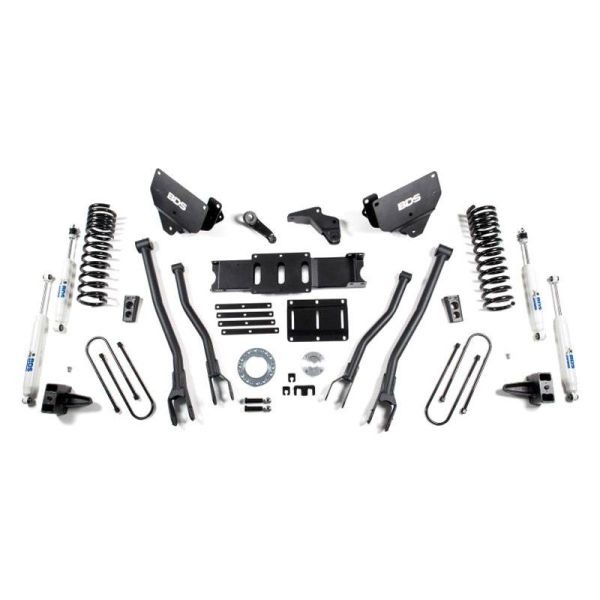

BDS Lift Kit 6in Diesel 4-Link Kit w/FOX Shocks

The factory radius arm setup is replaced with a 4-link system. The design starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required. The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with our radius arm brackets, there is a minor amount of welding required to install the threaded frame insert (1 per side). This insert is necessary to provide the strongest possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering infeelin, especially in rough terrain when the suspension is allowed to travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders. The new front coils spring are progressive rate in order to provide excellent on road ride and offroad performance. Track bar relocation, a dropped pitman arm and brake line relocation round out the front portion of the system. The rear is lifted via a 5in block and new ubolts to achieve a level stance.

Kit Components

BDS002609: Rear Leaf Spring X2

BDS012403: 4-Link Box Kit 2 of 2 X1

BDS012604: 6in 4-Link Box Kit 1 of 2 X1

BDS032602: Front Coil Springs X1

BDS122623: Transfer Case Indexing Ring X1

FOX98224752: FOX 2.0 Shock Absorber X2

FOX98224761: FOX 2.0 Shock Absorber X2

UBT4067: Round U-Bolt X4
