BDS Lift Kit 6in Standard Kit w/Air NX2 Shocks Diesel 6 Bolt

These standard kits are designed to retain the factory radius arms by relocating the frame mounting location using a pair of 1/4in steel drop brackets to maintain suspension geometry. The drop brackets key off the factory mounts and tie into the frame for extra strength. Also included in the kit are specially designed 6in diesel engine specific progressive rate ProRide front coil springs offering improved performance across all terrains. Also included is a heavy duty front track bar bracket, forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, high clearance transmission crossmember and transfer case indexing ring, rear block and u-bolt kit along with rear air bag lower spacers and sensor brackets.

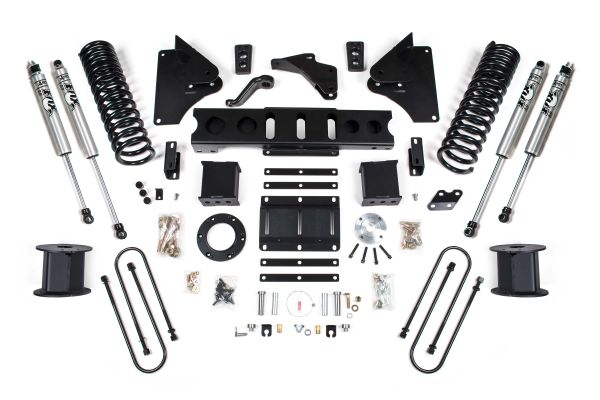

Kit Components

BDS012610: 6in Box Kit X1

BDS012618: Rear Box Kit X1

BDS122623: Transfer Case Indexing Ring X1

BDS032602: Front Coil Springs X1

BDS85752: NX2 Shock Absorber X2

BDS85758: NX2 Shock Absorber X2
