BDS Lift Kit 4in 4-Link System w/Air NX2 Shocks Diesel

These kits are designed to convert the factory radius arm over to a stronger 4-link design offering improved stability, handling and articulation. The kit is designed with 1/4in fabricated 4-link brackets that key into the factory radius arm pockets for added strength. The 4-link design improves handling and drivability by limiting castor change to less than 1-degree throughout wheel travel. These kits also include diesel engine specific progressive rate front ProRide coil springs, front and rear track bar brackets, a forged drop pitman arm, extended bump stops, brake line relocation brackets, sway bar correction, rear block and u-bolt kit along with rear air bag lower spacers and sensor brackets.

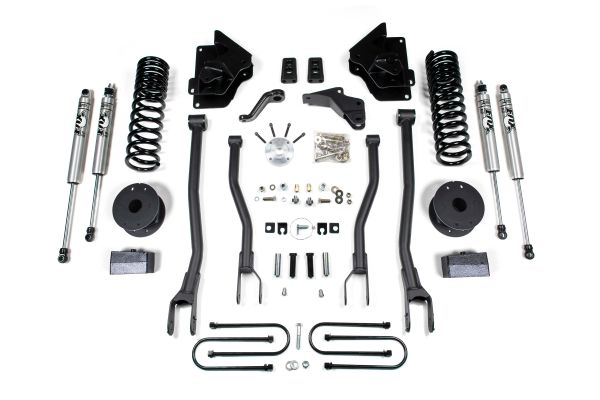

Kit Components

BDS012414: 4-Link Box Kit 1 of 2 X1

BDS012403: 4-Link Box Kit 2 of 2 X1

BDS012318: Rear Box Kit X1

BDS032401: Front Coil Springs X1

BDS85752: NX2 Shock Absorber X2

BDS85758: NX2 Shock Absorber X2
